| System Hardware |
|||
| CPU | RK3399 2*Cortex-A72+4*Cortex-A53 | Watchdog | Support hardware reset function(256 levels，0~255 seconds) |
| Memory | 4G LPDDR3 | Storage | Standard 16GB eMMC (optional 32GB/64GB) |
| Display | |||
| LCD Type | 21.5"TFT-LCD | Contrast Ratio | 1000: 1 |
| Touchscreen Type | 21.5" capacitive touch screen | Luminance | 250 cd/m2 |
| Max.Resolution | 1920*1080 | ||
| OS | |||
| OS | Android 7.1 | ||

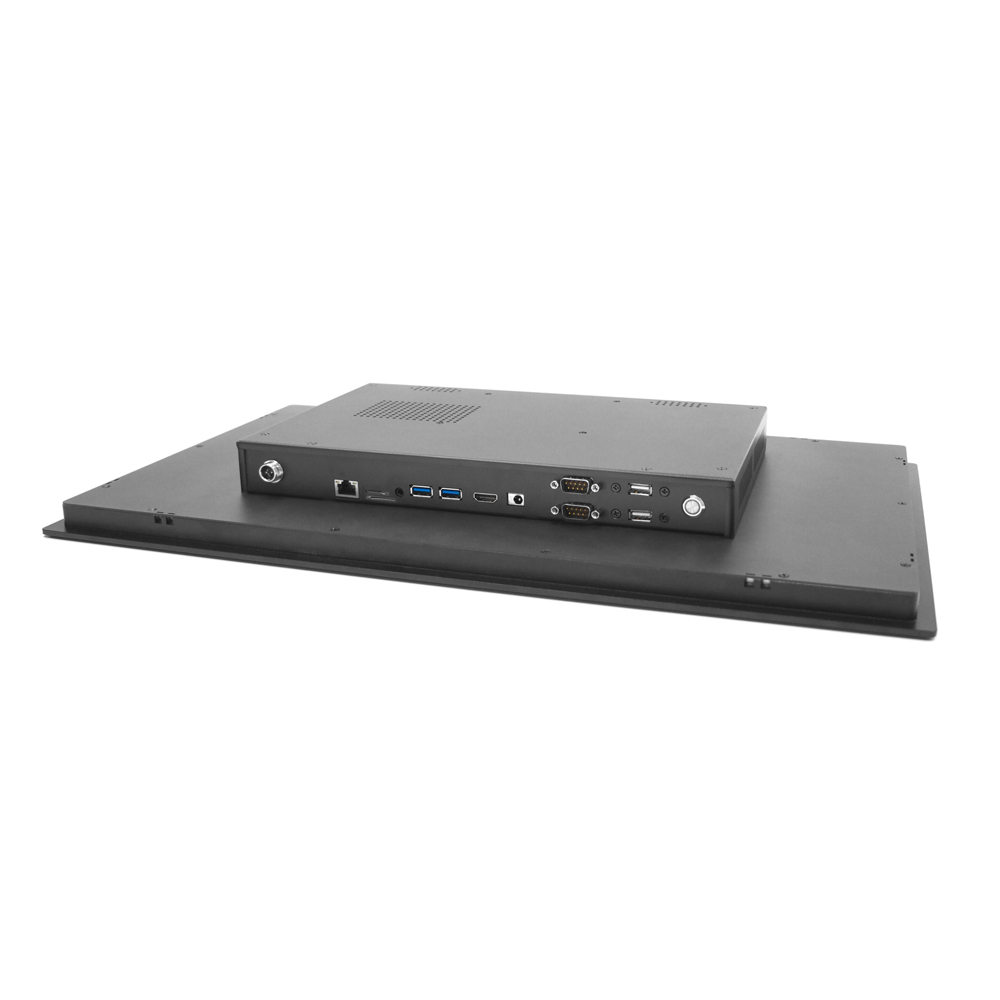

| l/O Ports | |||
| USB | 2*USB2.0 +2*USB3.0 | Audio | 1*Audio |
| Serial port | 2*RS232,1*RS485 Optional | Video | 1*HD |
| LAN | 1* RJ45 Gigabit Ethernet | WIFI | 2.4G/5.0Ghz dual-band |
| TF | 1*TF | BT | BT 4.0 |
| SIM | 1*SlM (optional 4G communication) | ||
| Power | |||
| Power Supply | 12V DC input (12/5A power adapter; 9-36V DC IN optional) | ||
| Environment |
|||
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0gacceleration | Operating Temp. | -10℃~60℃,without air flow |
| Shock Protection | 10g/11ms | Storage Temp. | -20℃~70℃ |
| Reliability | MTBF≥30000h; MTTR<0.5h | Humidity | 80% @50℃ non-condensing |
| IP Rating | Front panel lP65 | ||
| Mechanical |
|||
| Dimension (WxHxD |
543.0*334.4*56.2mm | Material | Aluminum alloy panel all metal fanless design |
| Weight | 6.67kg/8.16kg(N.W./G.W.) | Color | Black |
| Mounting | VESAinstallation: 100* 100mm Embedded installation: 523*314.4mm |
||
