| System Hardware |
|||
| CPU | RK3399 2*Cortex-A72+4*Cortex-A53 | Watchdog | Support hardware reset function (256 levels.0-255 seconds) |
| Memory | 4G LPDDR3 | Storage | Standard 16GB eMMC (optional 32GB64GB |

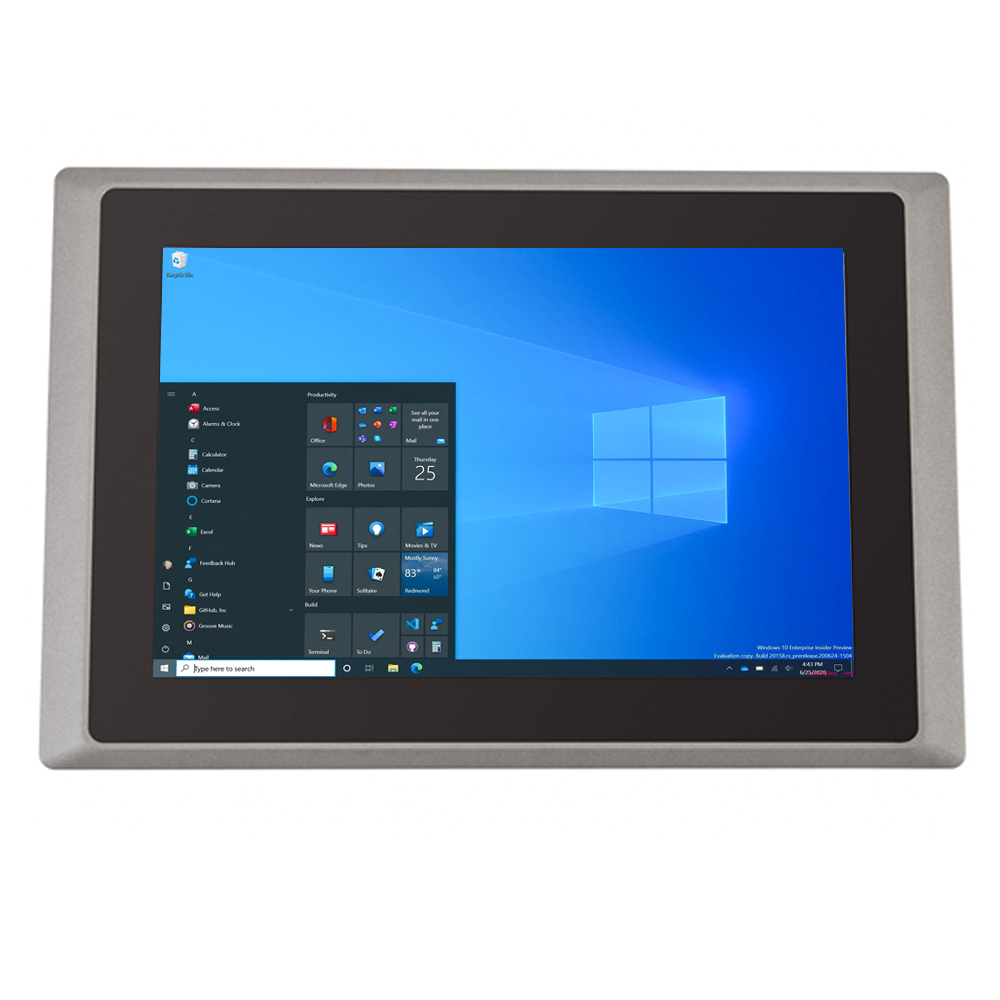

| Display | |||
| LCD Type | 10.1"TFT-LCD | Luminance | 350 cd/m2 |
| Touchscreen Type | 10.1" capacitive touch screen | Contrast Ratio | 800:1 |
| Max.Resolution | 1280*800 | ||
| OS | |||
| OS | Android 7.1 | ||
| l/O Ports | |||
| USB | 2*USB 3.0 | Audio | 1*Audio |
| Serial port | 2*RS232,1*RS485 Optional. | WIFI | 2.4G15.0Ghz dual-band |
| LAN | 1* RJ45 Gigabit Ethernet | Video | 1*HD |
| TF | 1*TF | BT | BT 4.0 |
| SIM | 1*SlM (optional 4G communication) | ||
| Power | |||
| Power Supply | 12V DC input (12/5A power adapter; 9-36V DC IN optional) | ||
| Environment |
|||
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0gacceleration | Operating Temp. | -10℃~60℃,without air flow |
| Shock Protection | 10g/11ms | Storage Temp. | -20℃~70℃ |
| Reliability | MTBF≥30000h; MTTR<0.5h | Humidity | 80% @50℃ non-condensing |
| IP Rating | Front panel lP65 | ||
| Mechanical |
|||
| Dimension (WxHxD |
290*210*51.4mm | Material | Aluminum alloy fanless design |
| Weight | 2.42kg13.51kg(N.WV.IG.W.) | Color | Black |

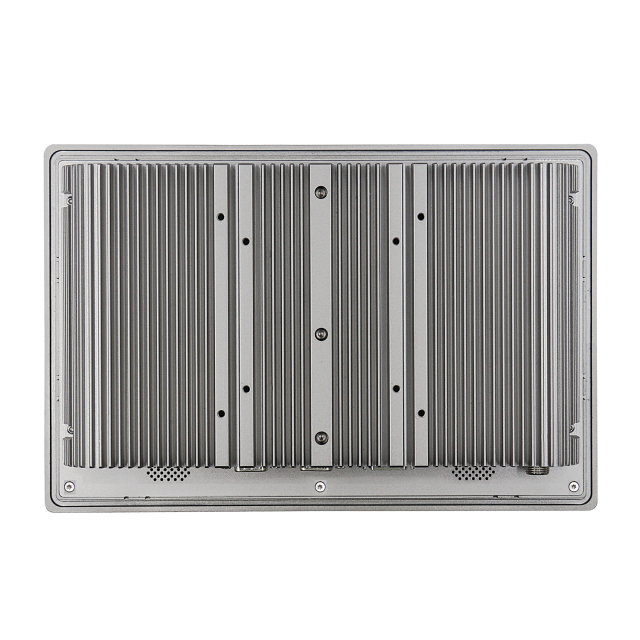

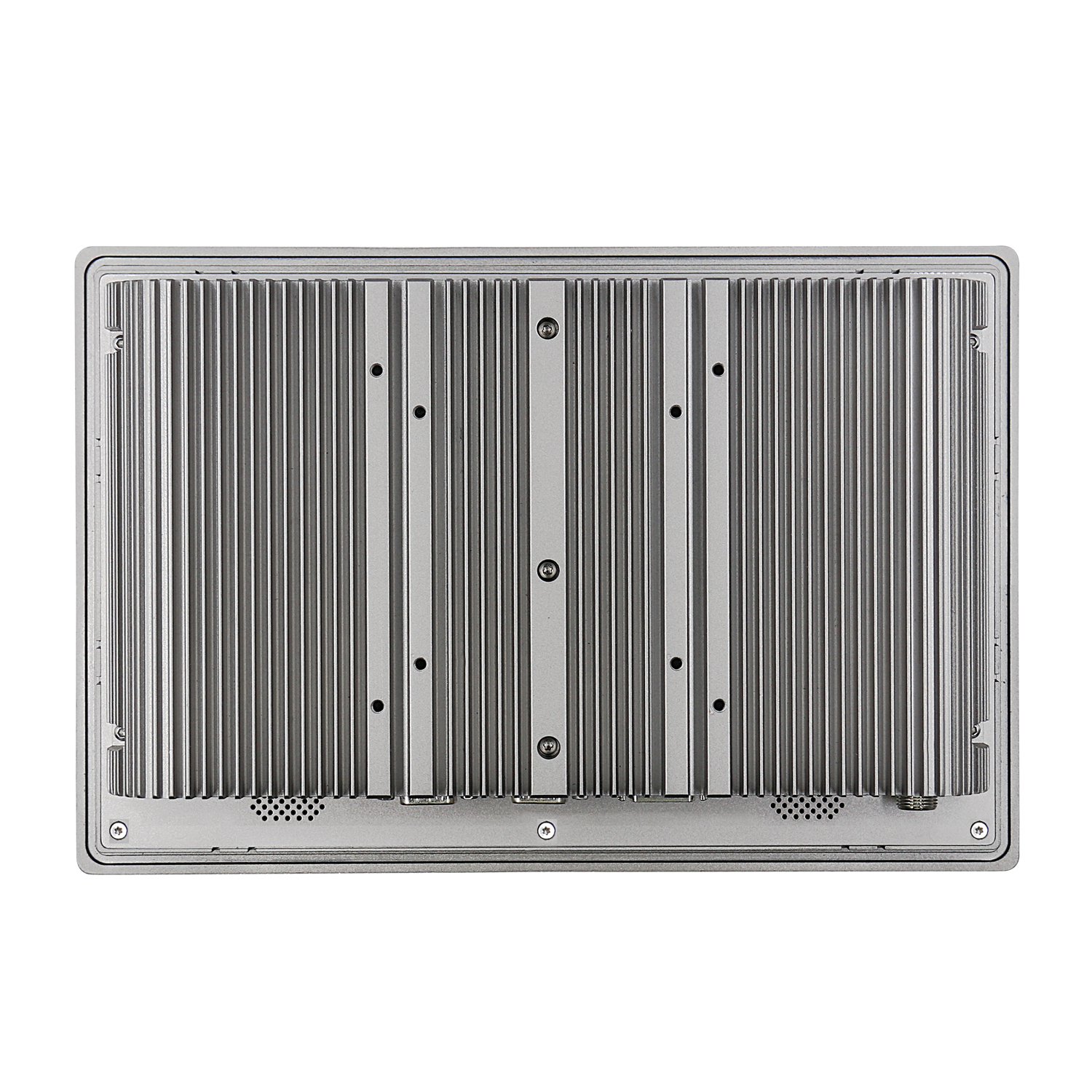

| Mounting | VESA mounting: 100*100mm Embedded installation: 271.38*192.59mm |
||
